IBS Flood Protection Hatches
Flood-Protection hatches are used exclusively for site-protection purposes. IBS Hatches are supplied in standard dimensions of up to 1200 x 1200 mm in size. Special sizes can also be supplied to order.
Hatches designed for a rated pressure of 2000 mm WS are wall-mounted (both constant-force and pressure fixing are possible). The stop orientation and angle of opening can be freely selected.
The main components (frame, leaf, hinges) of these flood-defence hatches are made of primer-coated black steel (S235). The frame is 80 mm thick. The hinge pins are supplied in stainless steel (1.4301) and the seals are made of EPDM.

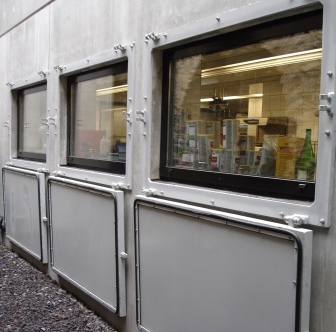

IBS Flood Protection Plates
Flood-defence plates are used exclusively - just like flood-defence flaps - for site-protection purposes. IBS plates are supplied in standard dimensions of up to 1000 x 1000 mm in size. Special sizes can also be supplied to order.
Designed for a rated pressure of 2000 mm WS, these plates are wall-mounted. Each plate is fitted manually, directly over the window opening. They are attached to the facade without a frame, by means of internally threaded sleeves. Unlike the plates [or panels?], only one installation on the water side is possible (pressure mounting).
The plate is supplied in aluminium, with sales made of PVC.
If you need any more Information about Hatches and Plates feel free to contact us.
